Noistop Wood

Combining beautiful Scandinavian wood design with good noise abatement.

Beautiful sound solution

All Noistop Wood designs have the effective noise absorbing and noise dampening stone wool core. The sections feature a sandwich construction with solid pine wood facades fitted to aluminium flanges on either side of the stone wool core for easy installation. The final results are decorative and slim fences.

  • Dampens noise by 21 dB in relation to EN-1793 and 24 dB in relation to ISO 717-1

  • Available in up to three different colours: green, anthracite and brown

  • Slim, lightweight construction dispenses with the need for lifting equipment during installation.

Add beautiful colours to your garden

The Noistop Wood elements are available in up to three different impregnation colours:

Natural

Anthracite

Brown

  • Natural

  • Anthracite (matches RAL 7015)

  • Brown (matches RAL 8003)

Flexibility through different module sizes

The noise fences are available in different sized sections, which makes it easy for you to install the fence yourself. The fences have a noise-absorbing core inside the impregnated wooden frame of pine wood.

The following module sizes are available:

Dimensions (LxHxW) per element

  • 100 x 100/090/045 x 17 cm

  • 200 x 100/090/060/045 x 17 cm

The modules can be mounted on e.g. 100 x 100 mm posts or larger.

Installation is very straightforward: the modules are fitted with aluminium flanges with pre-drilled holes for easy installation.

Noistop® Wood is EU Design Protected at OHIM (Office for Harmonisation in the Internal Market)

Accessories

01

Doors

Doors

Doors

Choose between 2 sizes of Noistop Wood "Elba" doors:

180 x 100 x 18,2cm
200 x 100 x 18,2cm

Gates will be delivered inclusive 3 keys for the universal lock. Available in up to 3 different colours - natural, anthracite and brown.

03

Supports

Supports

Specifications

Acoustic fence made of wood, aluminium strips, stone wool (core and acoustic material) and black PE netting.

Product Dimensions
Length (cm)
Height (cm)
Width (cm)
Weight pr. element (kg)
Elements per pallet
100
100
17
-
12-14
100
90
17
-
12-14
100
45
17
-
24-48
200
100
17
-
6-7
200
90
17
-
6-7
200
45
17
-
12-14
Technical Features
Insulation
24dB according to ISO 717-1 / 21dB according to EN 1793-2
Absorption
11dB according to EN 1793-1
Decorative surface
PE Netting (Polythene)
Wood
European Pine wood
Impregnation
User Class III according to EN 335:2013
Wind load test
Maximum load 1.02 kN/m2 (storm 24 m/s = 0.81 kN/m2) according to EN1794-1

Noistop Wood Series

Elba

The Elba design features a sandwich frame construction with horizontal wooden panels made pine, with aluminium flanges for easy installation.

Madeira

Noistop Madeira panels are densely covered with horizontal wooden laths of varying widths, making this design look very much like an ordinary garden fence. The distance between the wooden beams variates depending on the module height.

Ibiza

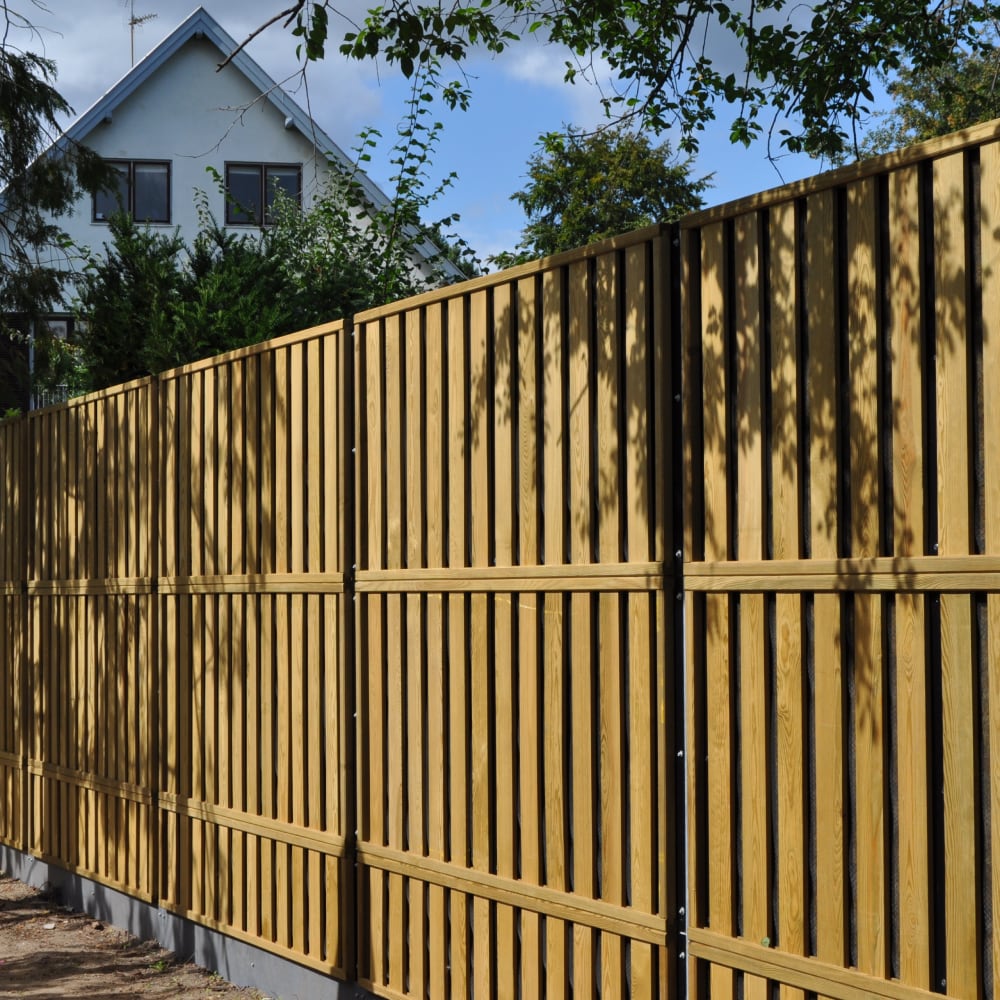

Ibiza is the classic Noistop Wood design. With its pure surface clad with vertical wooden panels, Ibiza closely resembles a normal garden fence.
